Right Angle Planetary Gearbox
DETAILS:
Right Angle Planetary Gearboxes from Sango Automation combine precision-ground 90° spiral bevel input gears with high-rigidity planetary reduction stages to solve compact space limitations.
Engineered specifically for servo and stepper motor drives, these perpendicular speed reducers deliver high torque density, low backlash (<2 arcmin), and outstanding radial load capacity across robotics, AGVs, and CNC equipment.
Sango Automation Limited is a trusted manufacturer and supplier of precision right-angle planetary gearboxes in China. With extensive engineering expertise, we provide high-performance 90-degree speed reducers for tight machine envelopes, AGV wheel drives, and multi-axis automated machinery.
Product Overview
A right-angle planetary gearbox achieves 90-degree directional motion change and speed reduction through a precision spiral bevel or hypoid gear input stage coupled directly to a planetary gear reduction assembly.
Unlike conventional worm gearboxes that suffer from low efficiency and thermal overheating, Sango right-angle planetary gearboxes maintain over 93% transmission efficiency under continuous full-load operation while delivering reduction ratios from 3:1 to 200:1.
Whether you require a compact right-angle reducer for AGV steer-drive units, a 90° gantry pick-and-place actuator, or an OEM build-to-print custom bevel planetary gearbox, Sango provides full technical support, 2D/3D CAD models, and rapid prototype manufacturing.
How It Works
90° Spiral Bevel Input Stage
High-precision spiral bevel gears redirect motor input torque 90 degrees with smooth multi-tooth contact and minimal noise (<58 dB).
Planetary Speed Reduction Stage
The bevel output directly drives the sun gear of the planetary stage, distributing mechanical loads across multiple planet gears for high torque density.
Compact Perpendicular Envelope
Mounting the motor parallel to the driven equipment saves vital axial length in tight machinery enclosures and mobile robotics.
Heavy-Duty Taper Roller Bearings
Oversized output bearings easily absorb combined radial cantilever loads and axial thrust forces in high-acceleration motion.
Technical Parameters
| Parameter | Value / Range | Note |
|---|---|---|
| Axis relationships | Right Angle (90° perpendicular input & output) | Gleason spiral bevel / hypoid input |
| Reduction ratio range | 3:1 to 200:1 | Single and double stage configurations |
| Transmission efficiency | ≥ 93% to 95% (Full load duty) | Precision ground spiral bevel tooth contact |
| Backlash precision grades | P0 (<2 arcmin) / P1 (<4 arcmin) / P2 (<6 arcmin) | Laser interferometry backlash verification |
| Rated output torque | 20 N·m to 2,200 N·m | Emergency stop torque up to 300% nominal |
| Input speed rating | 3,000 RPM (Nominal) to 8,000 RPM (Max) | Dynamic balanced motor coupling clamp |
| Protection rating & Lube | IP65 / IP67 · Synthetic PAO Lube | Permanent factory lubrication (20,000h) |
All specifications apply to standard and OEM / custom-drawing orders. Final tolerances are confirmed against customer technical drawings prior to manufacturing.
Manufacturing Capabilities
Our gear manufacturing facility is equipped with state-of-the-art Gleason CNC spiral bevel gear generators, Kashifuji KPS30 CNC skiving machines, and Reishauer gear grinders. We produce spiral bevel gears and planetary gear sets with module sizes from 0.5 to 5.0 and tooth flank accuracy meeting ISO Class 5 standards.
In-house vacuum heat treatment and controlled induction hardening ensure high tooth surface hardness (HRC 58-62) to resist contact fatigue while maintaining core toughness. Every right-angle planetary reducer undergoes strict 3D CMM metrology inspection and dynamic noise verification.

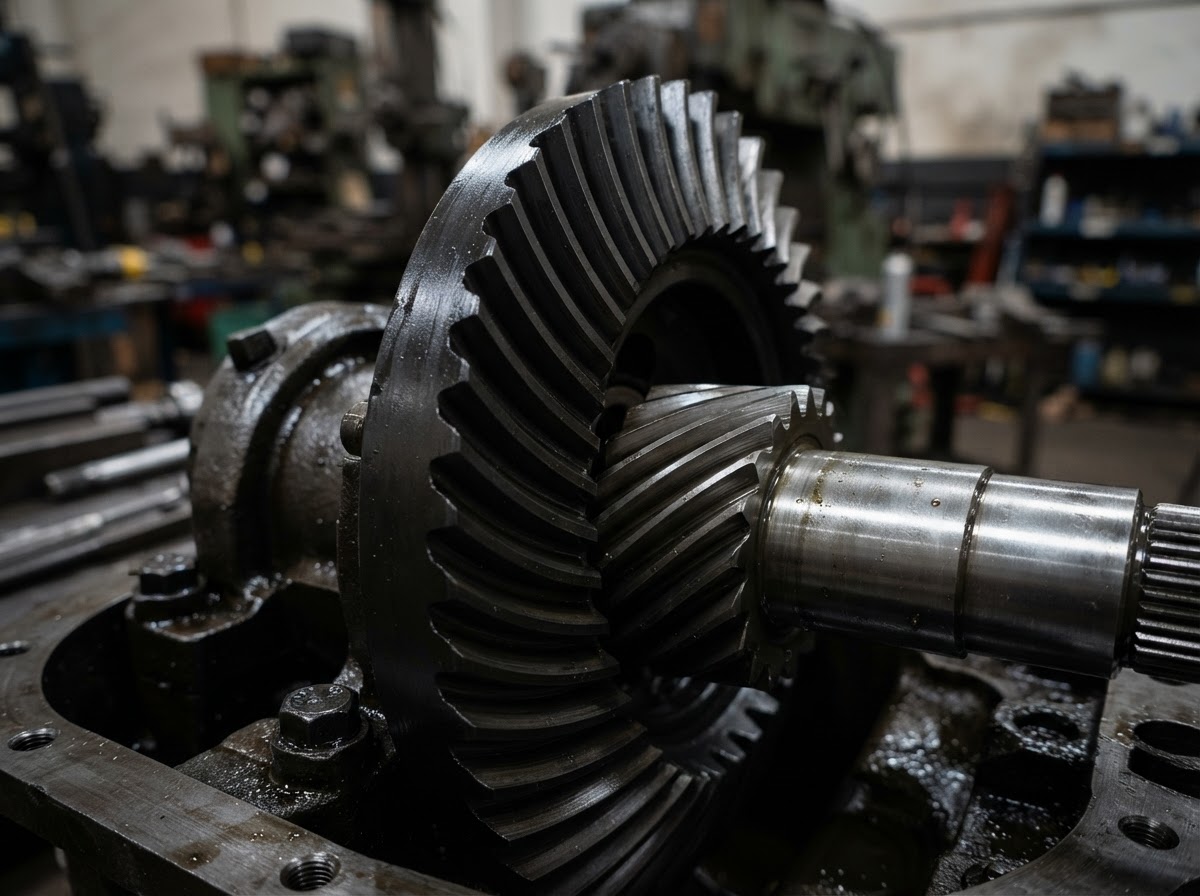

Precision Bevel Gear Processing Line
Planetary Reducer Assembly Line

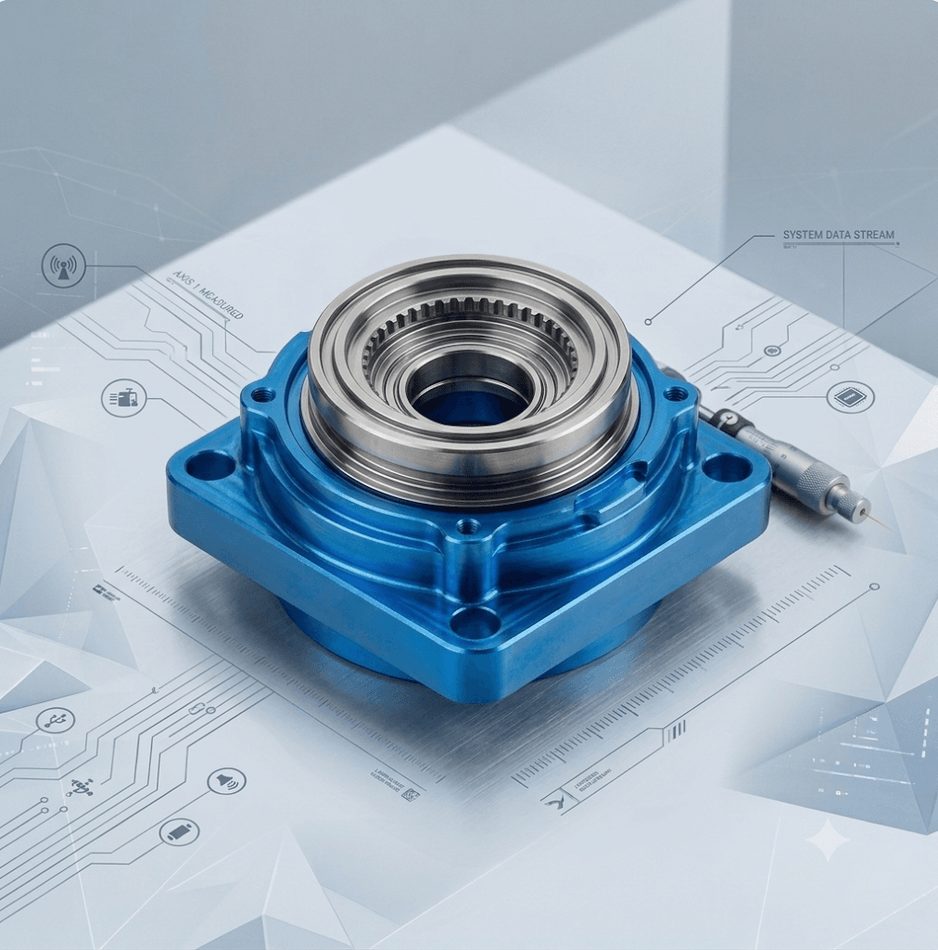

Quality Inspection Lab
Popular Right-Angle Products
Best-selling 90-degree planetary speed reducers for automation machinery.
WPL-090 Right-Angle Servo Reducer
Compact 90-degree spiral bevel planetary gearbox for 750W–1.5kW servo motors with P1 precision.
WPLF-120 Square Flange Right-Angle Reducer
Heavy-duty 90-degree square flange planetary speed reducer for 2kW servo drives and heavy lateral loads.
WPLH-060 Helical Right-Angle Gearhead
Spiral bevel and ground helical planet gear combo delivering whisper-quiet <58 dB operation.
